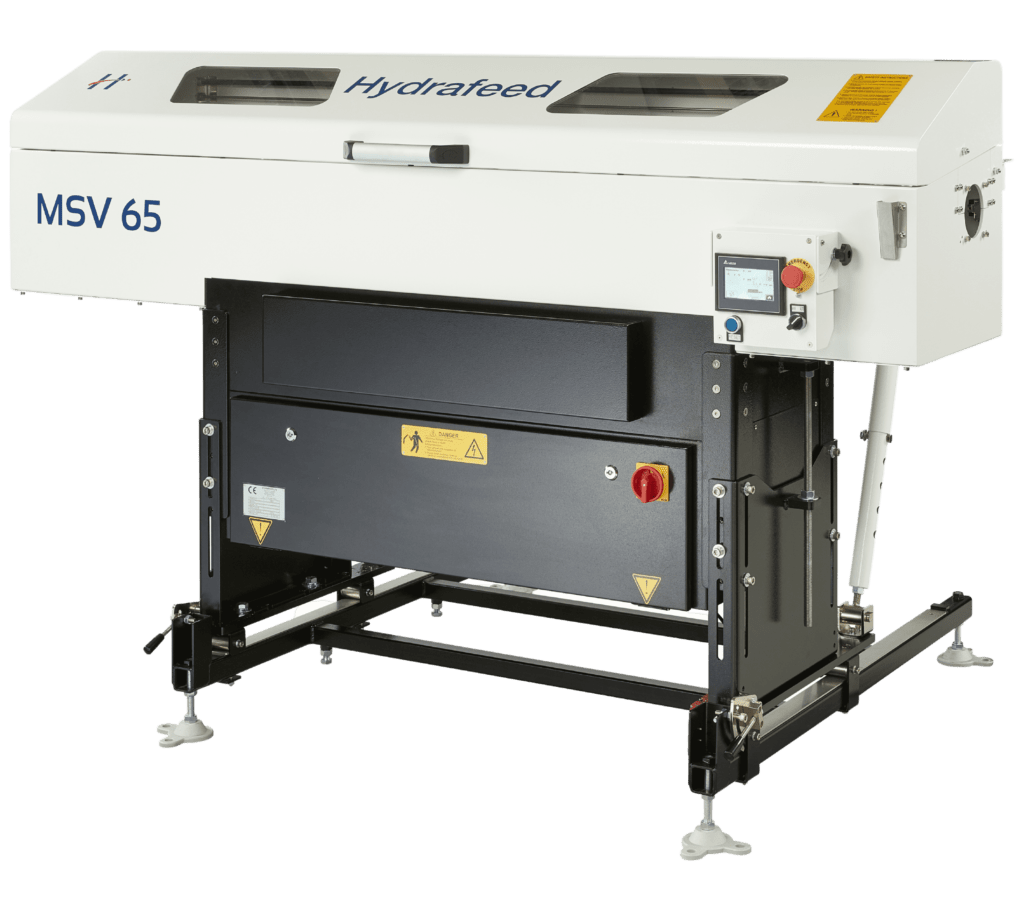

A full servo-driven Barfeed, the MSV65 eliminates the need for compressed air.

Unrivalled performance and accuracy combined with a user-friendly set-up make the MSV65 the ideal solution for increasing productivity from your machine tool.

Features:

• Standard bar diameter range 5-65mm.
• The bars are soft-loaded from the storage magazine onto rollers, providing minimum friction and allowing bars of an irregular shape or with a rough surface to be loaded.
• An easy-to-use HMI screen allows the operator to enter workpiece details. The programmed information is stored, resulting in minimum changeover time between saved jobs.
• For shaft work, the pushrod may be utilised as a backstop.
• The accuracy of the bar positioning is achieved by the precision ground servo-driven ball screw.
• The bar storage magazine has a standard depth of 600mm with simple gradient adjustment.
• The MSV65 is fixed to floor-mounted sliding rails in the X axis providing safe and easy access to the rear of the machine tool.

Optional Extras:

• For bars longer than the lathe headstock a Bar Support Unit will be required. This safely supports bar lengths outside the confines of the lathe headstock.
• The bar storage magazine can be fitted to the front of the Barfeed.
• Increased bar storage magazines can be provided.
• The floor-mounted sliding rails can be provided with Z-axis retraction.
