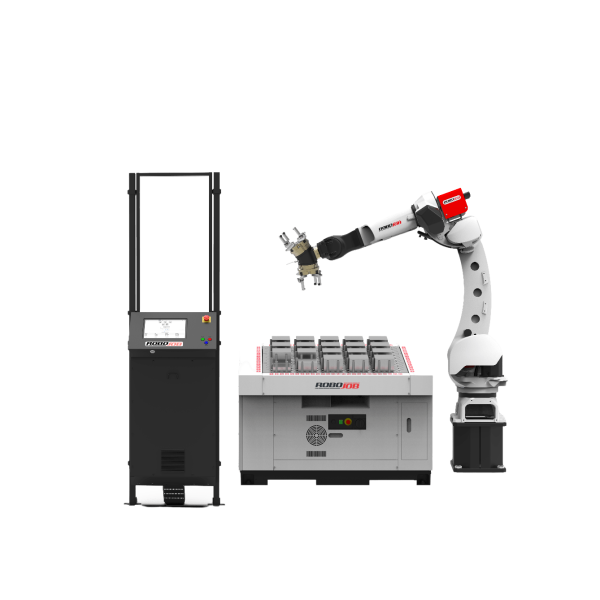

MILL-ASSIST SERIES
The Most Compact and User-Friendly Loading Solutions on the Market
You can choose from either integrated or separated automation in the Mill-Assist range
For integrated models, the automation is built on one fixed frame. This means you can easily remove the robot when maintenance to the CNC machine is needed. What’s more, you can also effortlessly move your automation system from one CNC machine to another.
For separated models, the key elements are constructed separately from each other. This means that you’ll have separate pick-and-place units and robot positions, which allows for flexibility in floorplan design. Separated robots are perfect for larger machining centres as the automation will not block across to your machine’s tool magazine, for example.
You can choose from the following models:
| INTEGRATED | SEPARATED |
25kg payload | ✓ | ✓ |
35kg payload | ✓ | ✓ |
50kg payload |
| ✓ |
70kg payload |
| ✓ |
Higher payload |
| ✓ |
The Mill-Assist Essential
Experience the Advantage of an Automation Machine
Set to work immediately with the Mill-Assist Essential. It’s easy to use and has been designed to specifically load and unload small runs and/or small workpieces. The fixed table allows you to configure workpiece supports or grid plates.
The user-friendly interface allows you to automate your small runs in minutes. It features intuitive, graphic software that guides you step by step through the process when you’re setting up your workpiece.
The Mill-Assist Essential is available in either the integrated or separated option. For the integrated model, it is easily moveable and offers automation on one fixed frame. For the separated model, the key elements are physically separated from each other.
- For small runs.
- For workpieces up to 400mm.
- Fixed table with limited stacking height.
- Robot payload from 25kg or more.
- Integrated or separated.
Why Choose a Mill-Assist
- High-quality automation solution.
- Increase your efficiency and output.
- Flexible solution that offers a wide applicability in weight and type of workpieces.
- Greater job satisfaction for your employees as repetitive tasks are reduced.
FLEXIBILITY
- Unique gripper concept
- Various gripper types
- Integrated airblow
- Workpiece detection
CAPACITY
- Highest capacity on the smallest surface
- No grip plates needed, although it is possible
- Stacking of workpieces
SIMPLE & SMART
- Intuitive graphic control
- Fastest setup and change over times
- Touch screen
EXTREMELY COMPACT
- The most compact automation on the market
- Visible and open configuration
- Installation in front of or next to the machine
Modular Extensions
Use one of our Mill-Assist options or modular extensions to give your automation additional capabilities.
Turn-Over Station
Offers a complete finish of your milling pieces, along all sides.
Increase your output even more and reduce work-in-progress with a Turn-Over Station. The robot will turn the workpiece itself so that all sides are processed in a single set-up command. This means the machine can remain working independently for even longer and work-in-progress is reduced. Finished components come off the machine, fully processed on all sides.
Revolving Unit
Enjoy a complete finish of your milling pieces, along all sides.
- High-quality design
- Higher output
- Your customised automation
Increase your output even more and reduce work-in-progress with our revolving unit. The robot will turn the workpiece itself so that all sides will be processed in a single set-up command. This means your machine will continue to work independently for even longer. Finished components come off the machine, fully processed on all sides.
Pallet Load
Enjoy the ease of automatic loading from a pallet.
- Immediate increase of your capacity
- Elimination of further manual processes
- Efficient internal transportation
Ideal if you produce larger series, Pallet Load will load your rough (stacked and loose) components from a pallet into your CNC machine. An efficient dream.
Pallet Unload
Offers automatic unloading to a pallet.
- Palletise effectively
- Immediate increase of your capacity
- Elimination of further manual processes
- Efficient internal transportation
Speed up production with the Pallet Unload extension. It will automatically remove completed components from your CNC machine and stack them efficiently onto a pallet.
Options
- Automatic messenger service.
- Automatic shutdown of the automation and the CNC machine.
- Grippers for multiple-shaped components.
- Vacuum grippers.
- Software for pre- and post-processing.
- Pull and break feature
- Turn-Over station.
- Portability to another milling machine.
If you want to discuss the additional options and modular extensions that are available, contact the Hydrafeed team. You will need additional software and/or hardware, so it’s best to talk to one of our experts about what you require.
HWT SOLIDGrip vices
Get the most out of your Mill-Assist with the HWR vice loading module. It allows you to automatically load and unload HWR SOLIDGrip vises on your CNC milling machine. You can load both workpieces and vices with one automation.
